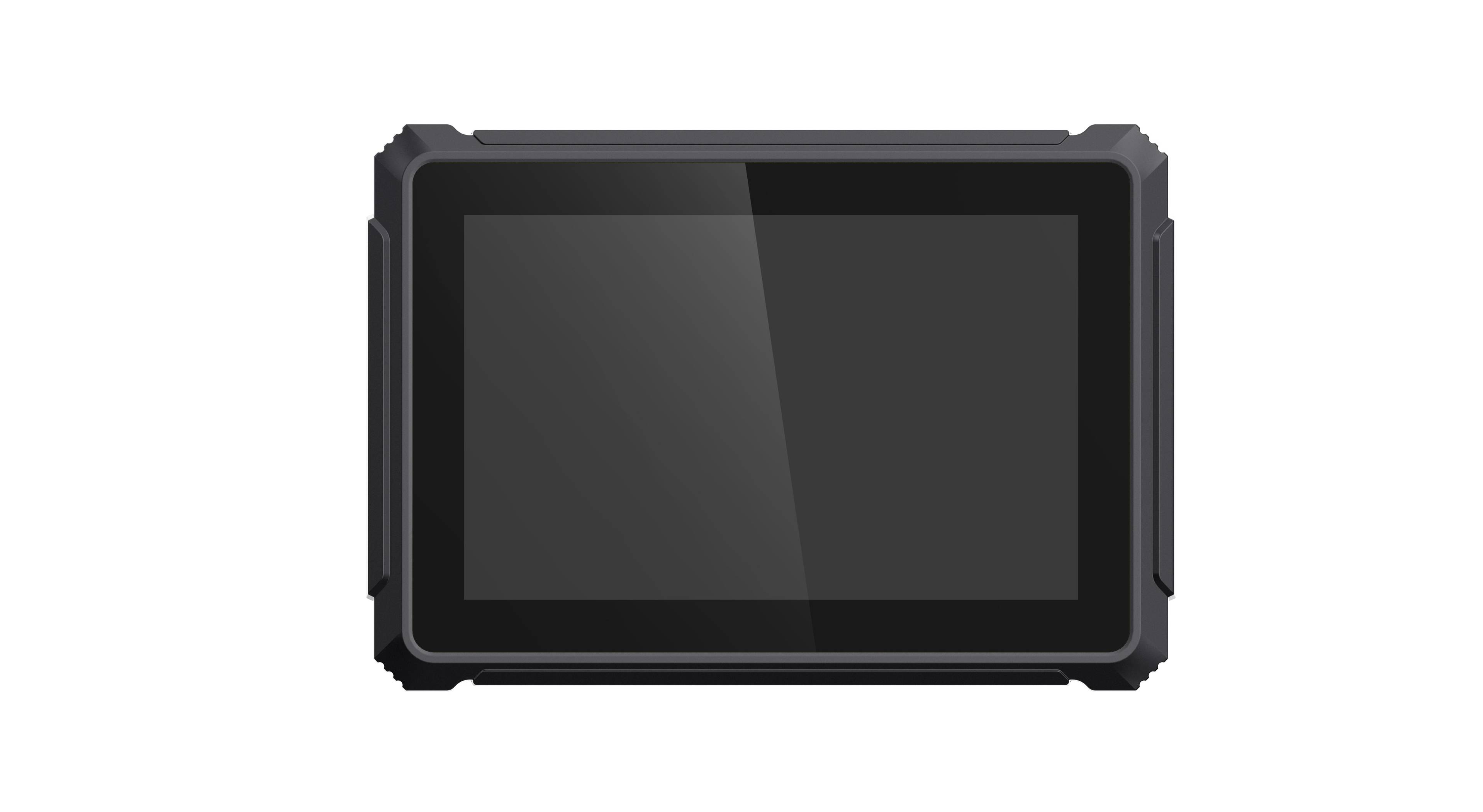

T8 is a robust and durable vehicle mount computer, which is suitable for various vehicles to work in complex and harsh environments.
It supports automotive-grade 64-bit processor,Android OS, IP rating IP66 . Moreover, by supporting the optional built-in centimeter RTK positioning module,T8 can meet the needs of automatic or semi-automatic driving of agricultural, engineering, construction and mining vehicles.
| Type | IPS screen | Port | Power button x1 |
| Size | 8" | USBC port x1 (for software debugging) | |
| Resolution | 1280x800 | USB Host A port x | |
| Brightness | >=750 CD/M2 | TF Card x1 | |
| View Angle | >=170 degrees | Nano SIM Card x1 | |
| Touchscreen | Full lamination, multi-touch | SMA antenna port x1 (for external normal GNSS positioning antenna) | |
| System | SMA antenna port x1 (for external LTE communication antenna) | ||
| Processor | 64-bit, 4-core Cortex A53@1 .5GHz | 6PIN connector x1 (Intercom interface) | |
| Memory | 4GB | 23PIN connector x1 (function extension interface) | |
| Storage | 64GB | Function Extension | Default function: 1*CAMERA+1*CAN+1*RS485+1*100M Ethernet+Power Input+ACC |
| OS | Android 10.0 | Combo 1 function: | |
| RF Communication | Combo 2 function: | ||
| WIFI | 2.4G WiFi, IEEE802 .11 b/g/n | Combo 3 function: | |
| BT | BT4 .0 BLE | Environment | |
| GNSS | GPS+BD module（N303-5Q） | Vibration | MIL-STD-810 |
| 4G LTE | LTE for Global (Quectel EG25): LTE-FDD: B1/B3/B7/B8/B20/B28 LTE-TDD: B38/B40/B41 WCDMA: B1/B8 GSM/EDGE: B3/B8 LTE For China: EEC200GCNLD I03-MN0CA(MINIPICI) LTE-FDD:B1/B3/B5/B8 LTE-TDD:B38/B39/B40/B41 | Impact | ISO16750 |
| Physical | Humidity | 95%, non-condensing | |
| Power | 9 ~ 36VDC (ISO 7637-II) | Working Temperature | -20°C～+70°C |
| Dimensions | 227x159 .5x48 mm | IP Rating | IP66 |
Provides secure and stable mounting for vehicle installations. Compatible with VESA mounting solutions for flexible deployment.
Delivers high-precision RTK positioning for demanding applications.
Compact USB camera for driver monitoring and video capture.
Heavy-duty mounting bracket for larger vehicle terminals.
Automotive-grade mainboard delivering stable performance for rugged vehicle computing applications.
Waterproof rear-view camera for reliable outdoor operation.
High-precision GNSS module supporting accurate positioning for navigation and RTK-enabled applications.
Enhances 4G signal strength for stable wireless connectivity.
Adds reliable 4G LTE communication for real-time data transfer.
Integrated cable harness for power, communication interfaces, and peripheral connectivity.
Supports accurate GPS and BeiDou positioning for navigation.
Suitable for commercial vehicles and off-highway equipment, including agricultural tractors, excavators, cargo and transport trucks, engineering cranes, autonomous mining trucks, heavy-duty trucks, buses, and ride-hailing vehicles.
