T7 is a sturdy and durable Vehicle Mounted Computer, which is suitable for various vehicles to work in complex and harsh environments.
T7 supports multiple definable buttons on the front, and can also support high-precision positioning.
Description
| Type | IPS screen | Port | Power button x5 |
| Size | 7" | USB Host A port x1 | |
| Resolution | 1024x600 | Nano SIM Card x1 | |
| Brightness | >=750 CD/M2 | TNC antenna port x2 (for external high-precision GNSS positioning antenna) | |
| View Angle | >=170 degrees | SMA antenna port x1 (for external LTE communication antenna) | |

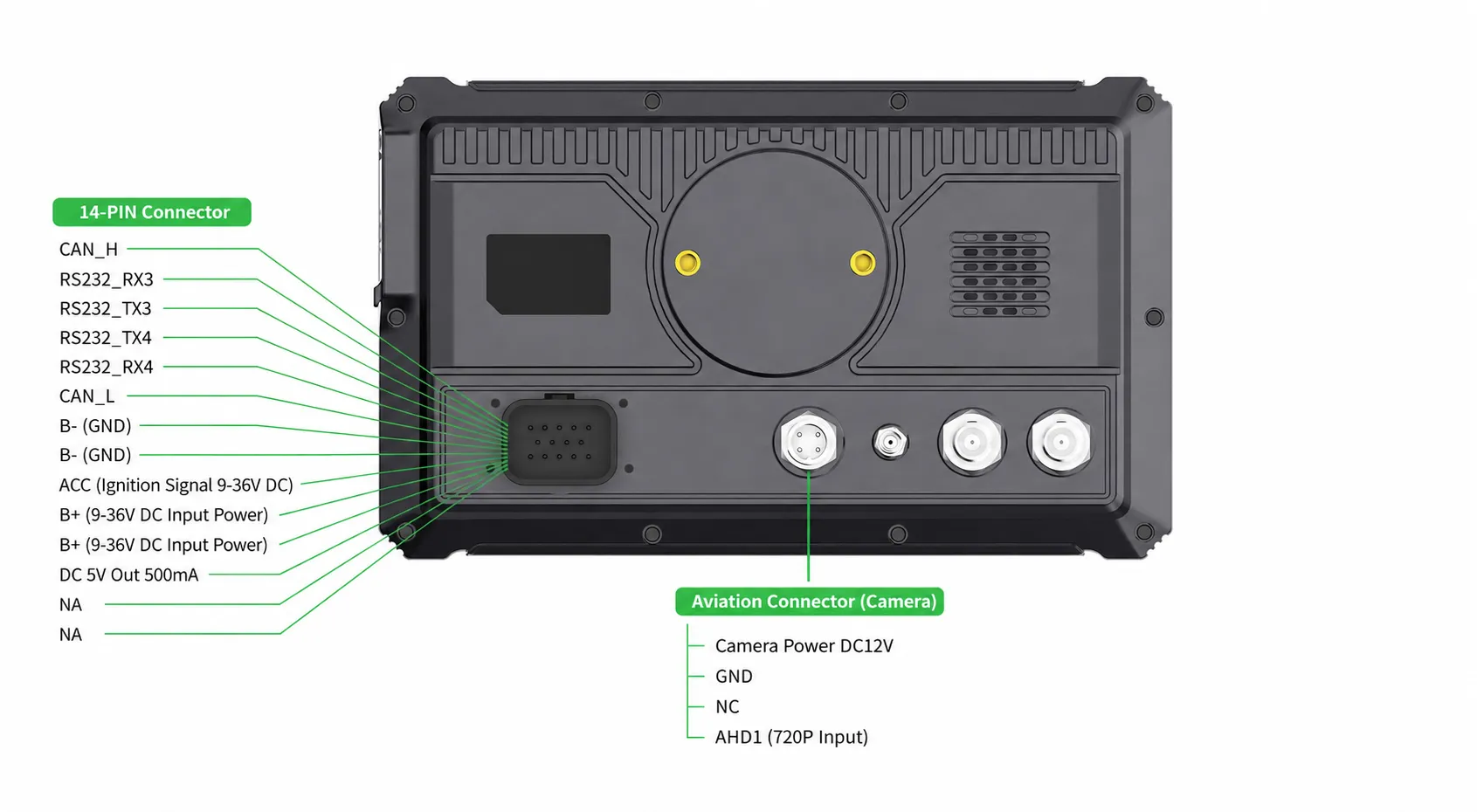

| Touchscreen | Full lamination, multi-touch | 14PIN connector x1 (function extension interface) | |
| System | 4PIN connector x1 (AHD camera) | ||
| Processor | 64-bit processor, quad-core Cortex A53 , frequency 1.5GHz, passed AEC-Q100 test | RF Communication | |
| Memory | 2GB | WIFI | 2.4G WiFi, IEEE802 .11 b/g/n |
| Storage | 16GB | BT | BT4 .0 BLE |
| OS | Android 10 or Linux4 .9+QT5 | GNSS | Support BDS B1I/B1C, GPS L1 C/A, GLO L1OF, Gal E1 frequency Support QZSS/SBAS Support BDS/GPS/GLONASS/GALILEO TTFF < 30 sec (Open sky) CEP < 2 m (Open sky) Cold start sensitivity: -147dbm |
| Environment | High Precision Positioning | Support UNICORE UM982 RTK module (optional) | |
| Vibration | MIL-STD-810 | 4G LTE | LTE for EU (Quectel module 4G module) : LTE-FDD: B1/B3/B7/B8/B20/B28 LTE-TDD: B38/B40/B41 WCDMA: B1/B8 GSM/EDGE：B3/B8 |
| Impact | ISO16750 | LTE for China: LTE-FDD: B1/B3/B8 LTE-TDD: B38/B39/B40/B41 | |
| Humidity | 95%, non-condensing | Physical | |
| Working Temperature | -20°C～+70°C | Power | 9 ~ 36VDC (ISO 7637-II) |
| IP Rating | IP66 | Dimensions | 220x134x29 mm (44 .15mm at the highest point) |

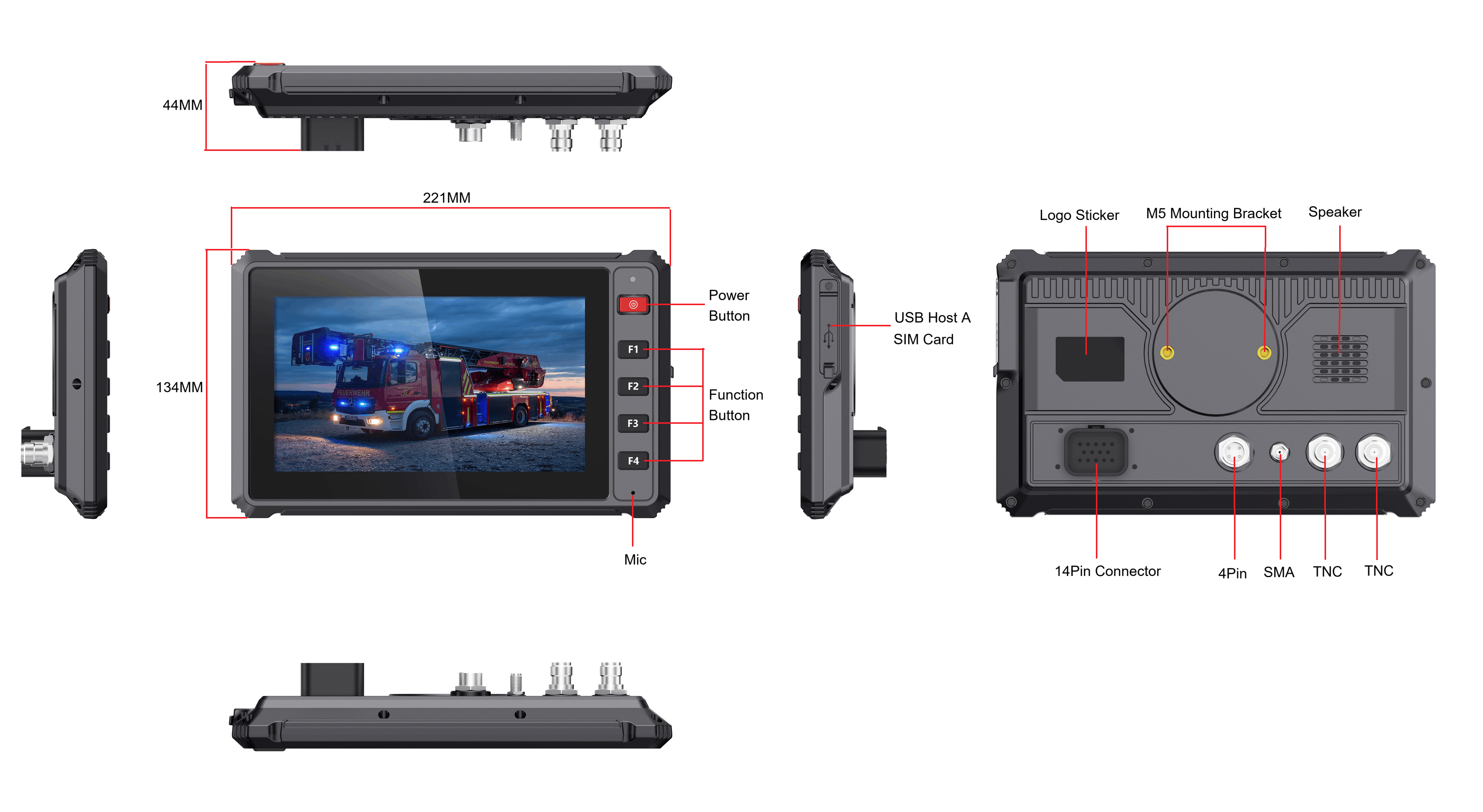

Product Views (Front / Back / Left / Right / Top / Bottom)
Accessory Selection
2.5KG Mounting Bracket (B201) for T7
Adjustable RAM-style mount for secure and flexible installation.
RTK GNSS Survey Antenna
Delivers high-precision RTK positioning for demanding applications.
Indoor Camera
Compact USB camera for driver monitoring and video capture.
Outdoor Camera (IP67)
Waterproof rear-view camera for reliable outdoor operation.
T507 Mainboard
Automotive-grade mainboard delivering stable performance for rugged vehicle computing applications.
14-Pin Power Cable
Supports power input and multi-channel camera connections for reliable vehicle integration.
u-blox GNSS Module
High-precision GNSS module supporting accurate positioning for navigation and RTK-enabled applications.
4G SMA Antenna
Enhances 4G signal strength for stable wireless connectivity.
EC200G 4G Module
Adds reliable 4G LTE communication for real-time data transfer.
BD & GPS Antenna (1.5 m)
Supports accurate GPS and BeiDou positioning for navigation.

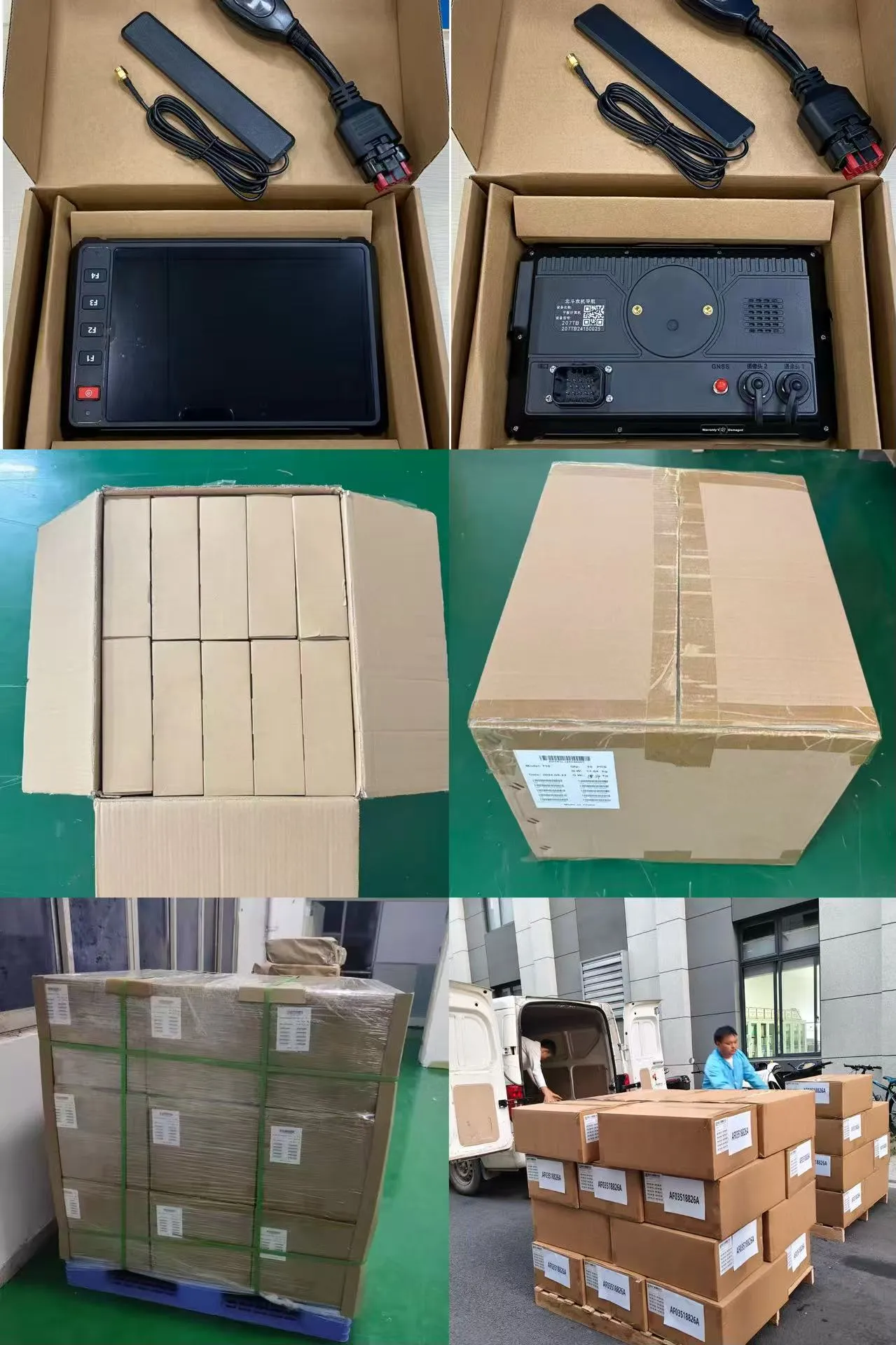

Shipment Pictures
Product Application Case
Suitable for commercial vehicles and off-highway equipment, including agricultural tractors, excavators, cargo and transport trucks, engineering cranes, autonomous mining trucks, heavy-duty trucks, buses, and ride-hailing vehicles.
