T8Pro 8Inch Vehicle Computer
contain
‌
‌
‌
‌
‌

Description

T8Pro is a robust and durable vehicle mount computer, which is suitable for various vehicles to work in complex and harsh environments.

T8Pro adopts Qualcomm QCM6125 processor, 8-core64-bit with 2.0GHz, has powerful CPU and GPU capabilities. It can provide 4-channel simultaneous video recording function to generate 4 video files.

T8Pro supports DISPLAY PORT interface, can realize dual-screen different display, and supports optional RTK GNSS module to realize RTK centimeter-level positioning and navigation to meet the needs of automatic or semi-automatic driving for agricultural, engineering or mining vehicles.

Type IPS screen Port
Size 8" Power button x1
Resolution1280x800USBC port x1 (for software debugging)
Brightness>=750 CD/M2USB Host A port x1
View Angle>=170 degreesTF Card x1
TouchscreenFull lamination, multi-touchNano SIM Card x1
SystemTNC antenna port x2 (for external high-precision GNSS positioning antenna)
Processor64-bit 8-core processor, Qualcomm QCM6125,Kryo260CPU+Adreno 610GPU, frequency 2.0GHz SMA antenna port x1 (for external LTE communication antenna)
Memory4GB LPDDR4 DP connector x1 (for connecting DP display）
Storage64GB EMMC 23PIN connector x1 (function extension interface)
OSAndroid 11 /Android 13 Function Extension Default function: 1*CAMERA+1*CAN+2*Speaker+ 1*Headphone+1*Microphone+100Mbps Ethernet
RF CommunicationCombo 1 function: 4*CAMERA+2*CAN+2*RS232+1*USB 2.0
WIFIdual-band WIFI, 2.4&5GHz, 802.11a/b/g/n/ac Combo 2 function: 4*CAMERA+2*CAN+1*RS485+1*USB 2.0+2*GPIO_INPUT
BTBT5.1 Environment
GNSSQualcomm built-in GNSS module Vibration MIL-STD-810
High Precision Positioning Support RTK module UM982 (optional)Impac ISO16750
4G LTEFor Europe/India/Korea/South Asia/ Latin America/Australia/South Africa LTE-FDD: B1/B2/B3/B4/B5/B7/B8/B20/B28 LTE-TDD: B38/B39/B40/B41 WCDMA: B1/B2/B4/B5/B8 GSM: 850/900/1800/1900 MHzHumidity 95%, non-condensing
PhysicalWorking Temperature -20°C～+70°C
Power9 ~ 36VDC (ISO 7637-II)IP Rating IP66
Dimensions227x159.5x48 mm

Product Views (Front / Back / Left / Right / Top / Bottom)

Product image
Product image

Accessory Selection

Squared Mounting Bracket

Squared Mounting Bracket

Provides secure and stable mounting for vehicle installations. Compatible with VESA mounting solutions for flexible deployment.

4.5KG Mounting Bracket C101-1 for T8 T10 T12

4.5KG Mounting Bracket C101-1 for T8 T10 T12

Heavy-duty mounting bracket for larger vehicle terminals.

RTK GNSS Servey Antenna

RTK GNSS Servey Antenna

Delivers high-precision RTK positioning for demanding applications.

In Door Camera

In Door Camera

Compact USB camera for driver monitoring and video capture.

T507 Mainboard

T507 Mainboard

Automotive-grade mainboard delivering stable performance for rugged vehicle computing applications.

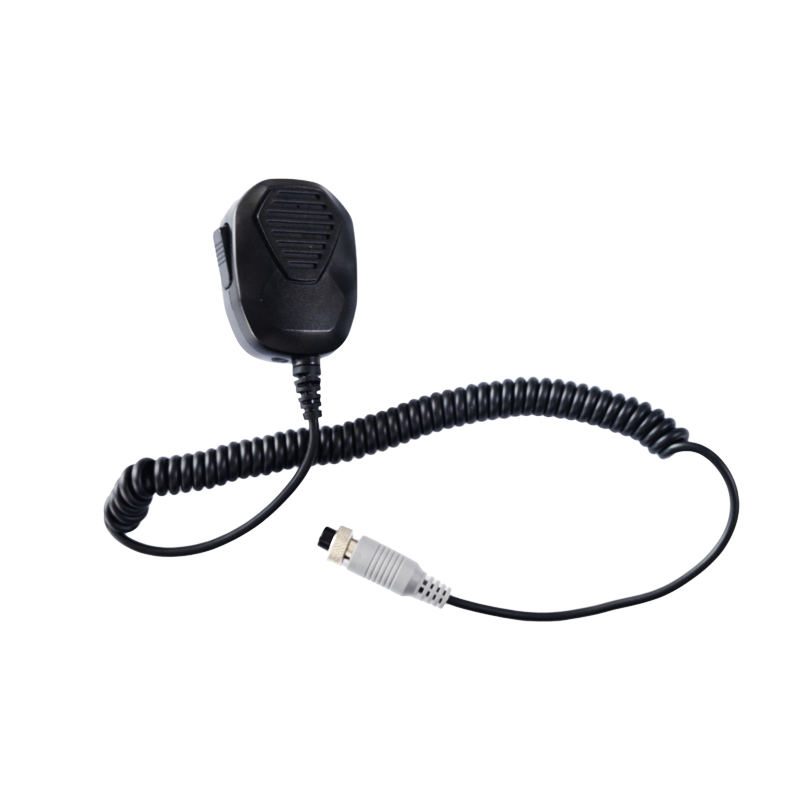

Handheld Intercom

Handheld Intercom

Push-to-talk microphone for clear in-vehicle voice communication.

Outdoor Camera (IP67)

Outdoor Camera (IP67)

Waterproof rear-view camera for reliable outdoor operation.

u-blox GNSS Module

u-blox GNSS Module

High-precision GNSS module supporting accurate positioning for navigation and RTK-enabled applications.

4G SMA Antenna

4G SMA Antenna

Enhances 4G signal strength for stable wireless connectivity.

EC200G 4G Module

EC200G 4G Module

Adds reliable 4G LTE communication for real-time data transfer.

BD & GPS Antenna (1.5 m)

BD & GPS Antenna (1.5 m)

Supports accurate GPS and BeiDou positioning for navigation.

23-Pin Power Cable

23-Pin Power Cable

Integrated cable harness for power, communication interfaces, and peripheral connectivity.

Shipment Pictures

Shipment picture

Product Application Case

T8Pro 8Inch Vehicle Computer application case

Suitable for commercial vehicles and off-highway equipment, including agricultural tractors, excavators, cargo and transport trucks, engineering cranes, autonomous mining trucks, heavy-duty trucks, buses, and ride-hailing vehicles.

Application Gallery

fleet management

fleet management

Technical Blogs

PDS Technology T8 8 Inch Vehicle Mount Computer – The Balanced Gold Size Built Entirely for Fleet Digital OperationsWhat is RTK GNSS? How Does Centimeter-Level Positioning Work for Industrial Vehicle Computers7-Inch vs 8-Inch Vehicle Computers: Which Size Fits Your Vehicle? | PDS Technology
